Remove and Replace Natural Gas Hot Water Boiler

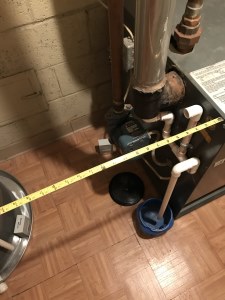

Since the older boiler was a WM of approximately the same dimension, it made planning a little easier.

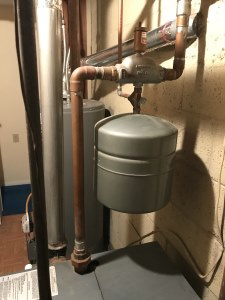

The old copper pipes (1 1/4") were sized to the old boiler so a reducing fitting had to be added to accommodate the new 1" copper and 1" black "iron" pipes dictated by the new boiler

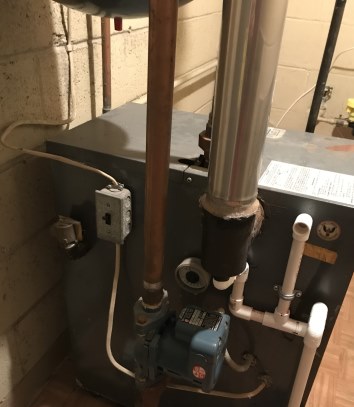

Disconnecting the old boiler.

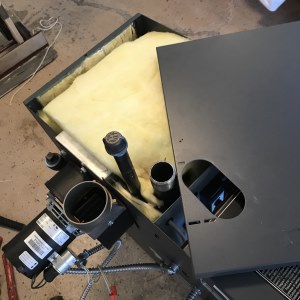

Opening the "hood" getting ready to pressure test.

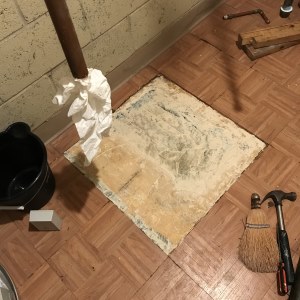

A little tile replacement!
1986-2023
Early plan sketch that evolved
WARNING :This article is for educational purposes; I am just relating my personal experiences. I believe the information given to be accurate, but should not be used as an instructional manual. You should follow the manufacturer's directions and comply with all local codes. Your level of expertise and educational credentials/certifications may vary. When you are not confident, why not let a professional HVAC person do the installation?
EducationDx
©2023
©2023
WARNING :This article is for educational purposes; I am just relating my personal experiences. I believe the information given to be accurate, but should not be used as an instructional manual. You should follow the manufacturer's directions and comply with all local codes. Your level of expertise and educational credentials/certifications may vary. When you are not confident, why not let a professional HVAC person do the installation?
EducationDx
©2023
©2023
From the WM Boiler Manual:
Flooring
The CGi boiler is approved for installation on combustible
flooring, but must never be installed on carpeting.
Do not install boiler on carpeting even
if foundation is used. Fire can result,
causing severe personal injury, death
or substantial property damage.
Flooring
The CGi boiler is approved for installation on combustible
flooring, but must never be installed on carpeting.
Do not install boiler on carpeting even
if foundation is used. Fire can result,
causing severe personal injury, death
or substantial property damage.

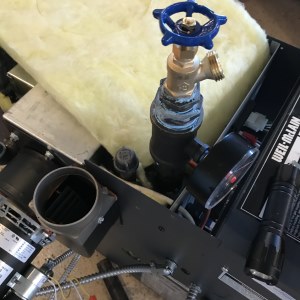

Connecting a few valves to enable pressure test.
Some other corrections had to be made, since the mechanical room also houses a natural gas water heater. I wasn't interested in a domestic and heat combo.
It involved a reconfiguration of the cold water supply for both the water heater and the boiler. Also, some valves were replaced with ball valves.
It involved a reconfiguration of the cold water supply for both the water heater and the boiler. Also, some valves were replaced with ball valves.
